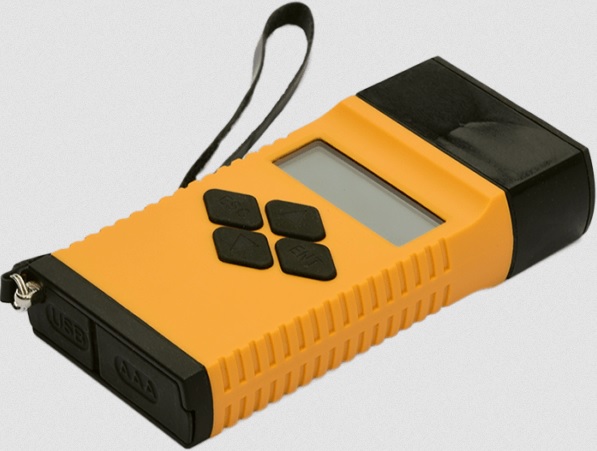

KM-7 Magnetic Susceptibility Meter

The KM-7 magnetic susceptibility meter is a small, handy sized device which is easy to use, economic and efficient for measuring the magnetic susceptibility of rocks and core samples, in addition, you may also find it suitable for the selection of appropriate samples for precise measurements of their magnetic properties in the laboratory.

It has the ability to measure within the range of ± 999 x 10-3 SI units with automatic range change, with a maximum sensitivity is 1 x 10-6 SI units. The excellent memory storage allows users to record up to 999 readings. As the device is intended for use out in the field, it is made from tough, robust plastic and rubber housing around the battery compartment and sensitive parts. Able to survives drops and knocks and is water tight.

It can further provide single and scan modes of operation, fast and easy to use with high resolution readings a measuring pin and features a GPS connection via Bluetooth.

Specifications:

• Sensitivity: 1 x 10-6 SI units, 1 x 10-5 SI units in scan mode
• Measuring range: ±999 x 10-3 SI units with automatically range change
• Operating frequency: 10 kHz
• Display: 4 rows, backlit
• Memory: 999 readings without GPS data
• Controls: 4 switches: Escape, Enter, Up, Down
• Power source: 2 x AAA battery
• Weight: 250 g including battery
• Size: 165 x 68 x 28 mm
• Temp range: -20°C to +60°C
• Power Consumption: 8 mA without backlit and Bluetooth
• Interface: USB 2.0, Bluetooth

To view further information, please view the brochure HERE.
