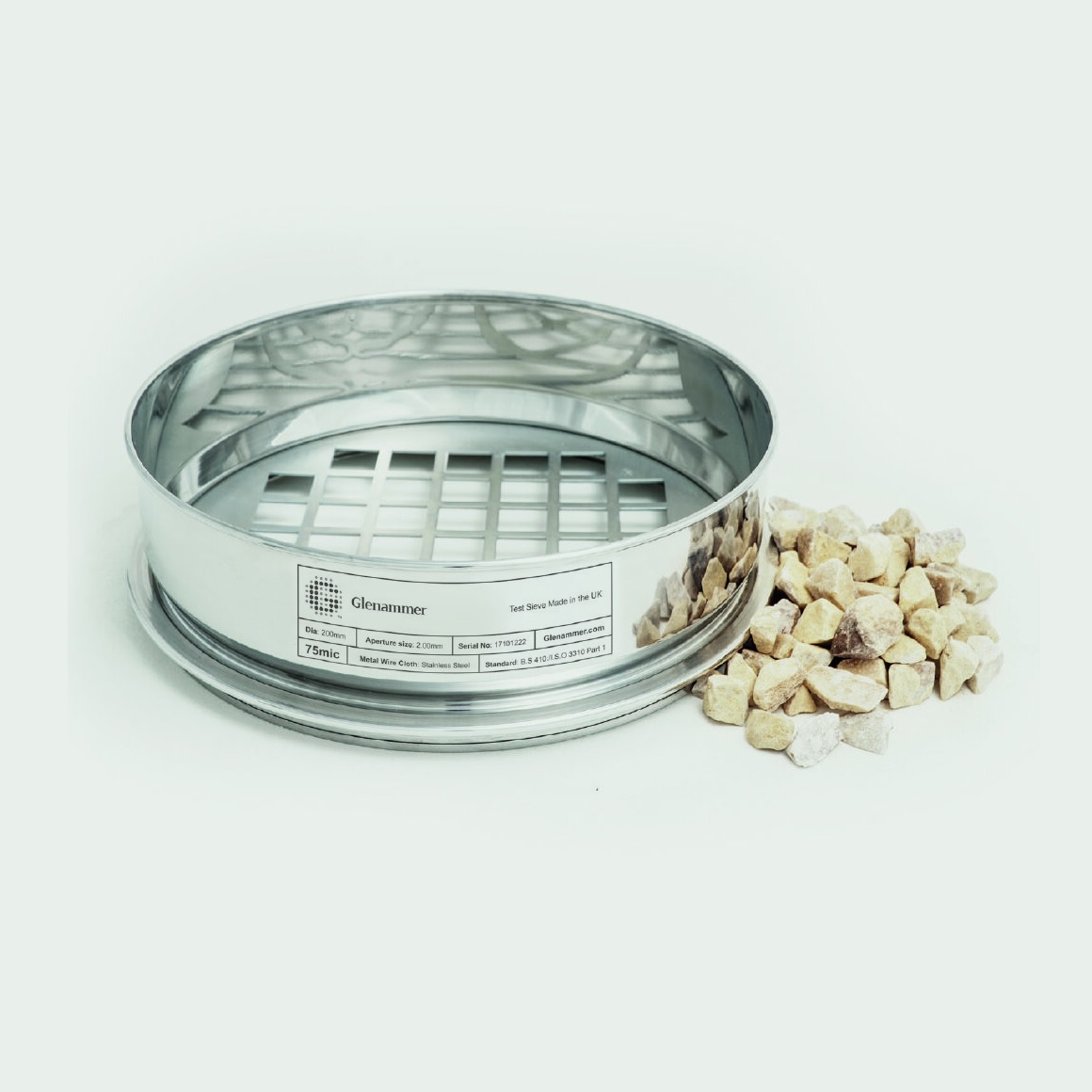

Perforated Test Sieves – 300mm

SKU: 300MM_PERF_SIEVE

£87.00£136.00 ex VAT

Perforated aggregate test sieves made to laboratory and field specifications. These sieves are 300 mm in diameter allowing for a larger, moderate amount of material such as aggregates and gravels to be sieved and processed. Each sieve has optional perforated plates to chose from, ranging from 1 mm to 125 mm, filtering out particles based on their indexes. With no sharp or pointed edges and laser engraved badges and an ISO certificate, Glenammer sieves are an excellent, well produced product which no analysis project should be with out.



Specifications:

  • Material: stainless steel, plate, zinc coated mild steel
  • Mesh type: perforated plate
  • Mesh sizes: optional, 1 mm to 125 mm
  • Compliance: B.S. 410/I.S.O. 3310 standard and ASTM E11:20 standard

Perforated Test Sieves – 300mm in diameter. Featuring a stainless steel full-height body with a CNC-punched perforated plate with circular holes.. Among the most common diameter of sieves in use for analytical purposes. Each sieve measures 300 mm in diameter and 75 mm in height making them ideal for most applications. Able to hold a small yet, moderate amount of material per sieve. Sieves are used in a variety of sectors for particle sorting and grading applications. Such as petroleum, pharmaceutical, sand, soil, paint, chemical raw feed, food, and coal. In addition to agricultural products, seeds, plants, transfer material, metal powders, fertilizers, glass, building materials, resins, and more. However, perforated test sieves are particularly suitable for sieving larger, coarse, and tougher materials. Particularly aggregates, making these sieves useful in mining and quarrying industries. As the perforated plate holds up better to the continuous impact of aggregate particles.



Using high-quality, 316-grade stainless steel for the body which is overall, which possesses better overall corrosion-resistant properties. They will never rust and have excellent strength. The perforated plates are zinc-plate mild steel for resistance and robustness. The manufacturing process results in an easy-to-use, easy-to-clean ISO and ASTM-calibrated piece of apparatus. The bodies are completely sealed, therefore, there will be no loss of, or residual material left over. Additionally, the sieves do not have any sharp edges, points, or corners, making them safe overall.



Perforated Test Sieves – 300mm feature a range of optional aperture sizes which range from 1 mm to 125 mm to suit your requirements. They are robust and accurate, being equally useful for both laboratory and field applications. The sieves can stack upon each other forming a tight seal between each one. While there is no limit to stacking. Sieve shakers will mostly take up to 8 sieves, (excluding a receiver) only. Each sieve comes in a protective card box which also includes the calibration certificate. Particularly useful in the mining sectors, academic applications for earth science study and research as well as sediment and ecological projects. Sieve receivers and lids are also optional extras.



For advice on cleaning and care of your sieves, please click, HERE.

To view our range of other particle analysis products, please click, HERE.



Sieves Manufacturing and Calibration Process
