Dual Axis Core Saw


Dual axis core saw machine, ideal for drilling site, field lab and mineral exploration use. This saw has the added benefit to cut cores or natural blocks of stone on an axis of 0° to 90°. With this feature, you can also cut stone into cubic blocks, this is beneficial for geotechnical engineers. Seeking cubes in order to test physical properties of stone. The saw can cut up to 4 inch diameter cores up to 50 cm in length and comes in a single or three phase model, at 3 HP and 4HP.



  • Construction: steel and galvanised
  • Dimensions: 1380 x 800 x 1400 mm
  • Weight: 96 kg
  • Power Supply: 220 V/ 50-60 Hz or 380-400 Vac, 50Hz
  • Motor: 2.2 kW or 3 kW
  • RPM: 2800
  • Max cutting depth: 135 mm
  • Max cutting length: 500 mm
  • Water: 200L decantation water tank available


For a quotation on the Dual Axis Core Saw, please contact us, HERE.

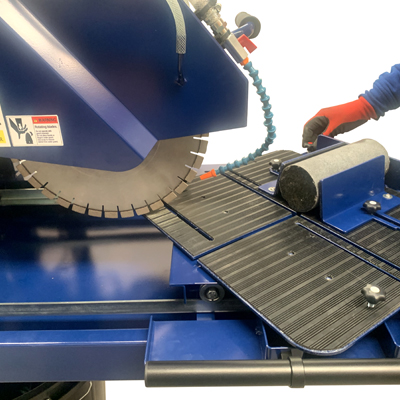

Dual axis core saw is an ideal plant machine for cutting rough natural stone or core samples. It is essential on drilling or field exploration sites and labs in order to prepare rock samples and cores. Often this is in order to observe and study the internal structure of samples. Additionally, it’s unique feature is its rotating support. This allows you to cut rock samples from an axis of 0° to 90°, (slabbing & trimming).


The dual axis core saw is available in either a single phase, 3 horse power machine. Or a three phase, 4 horse power machine. With a 220 V/ 50-60 Hz power supply with a 2.2 kW power motor which produces 2800 RPM. The saw can cut up to 4 inch diameter cores up to 50 cm in length. In addition, add on clamps allow you to also cut irregular shapes of natural rock samples. Which can hold a maximum size of 30 x 30 x 20 cm. Furthermore, the machine also offers you to ability to dry or wet cut and speed-up the process of preparation, thanks to its built in water pump.

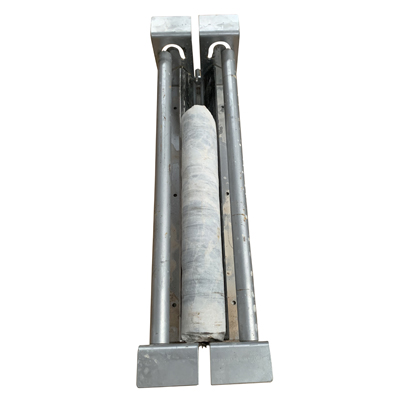

Manufactured by the excellent team at GeoFactory EU. The saw comes with a core holder, in order to stabilise your samples as well as be safe. It offers the additional advantage that the core sample is moved to the diamond blade and cooled with a steerable hydraulic setup. Overall, the machine comes in at a weight of 96 kg and measures 1380 x 800 x 1400 mm, not taking up too much valuable space in a field lab.

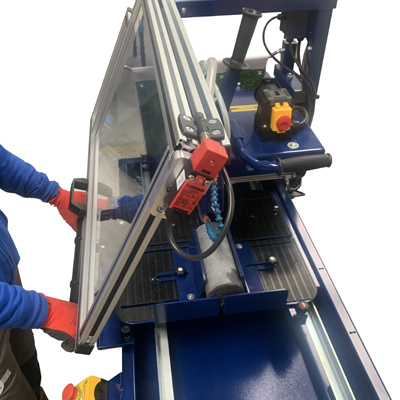

Dual Axis Core Saw Use and Examples
